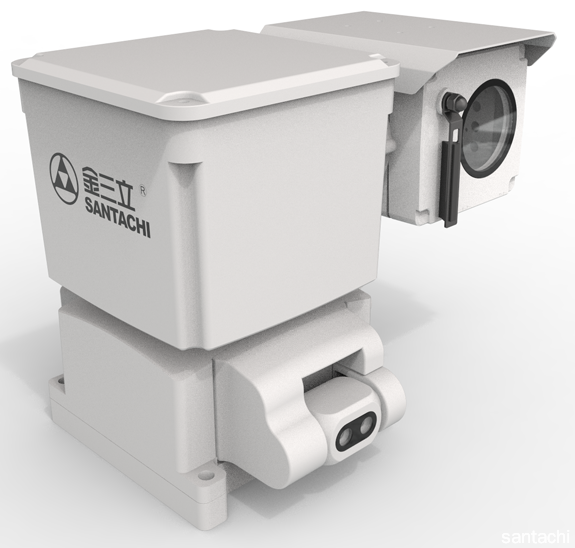

Power Transmission Online Monitoring Intelligent Dynamic Capture Camera [V5 / V5Plus]

·The upper PTZ supports 20X optical zoom lens

The upper PTZ supports horizontal 360 ° infinite rotation, vertical -90° ~ + 90° rotation,

Achieve all-round dead space-free monitoring of the status of the tower, hardware, insulator strings, wires and channels

·Support 16 million ultra high-definition collection + 200W ultra- low light night collection

Adjustment from -45 ° to + 45 ° can be realized to meet the monitoring needs of different terrains. High-definition collection during the day can be realized by ultra-high-definition 1600w pixels.

Ultra-low light night vision 200w pixels, using 0.001 LUX ultra-low light sensor to achieve clear collection at night

· Ultra-low power consumption

Standby 0.2 W, snapshot ≤ 2W, support intelligent power management

·Dynamic snapshot of preset point

Support preset position image dynamic capture

·AI intelligent analysis (only supported by V5plus)

Construction machinery, foreign objects, bodies, fireworks, traffic incidents

·Full HD monitoring of hardware

HD monitoring of insulators, ground wires, spacers, anti-vibration hammers, etc.

·Intelligent inspection

Support automatic inspection monitoring; supports monitoring of hanging objects

·IP67 protection level

Pass spray impact test

·Smart wiper system

Equipped with wiper control system and special optical glass

·Lightweight equipment convenient to be installed

Small and flexible appearance, the basic configuration of the host is about 3KG

· Fixed supported power supply

30W solar panel; 20AH lithium battery

Note: The battery in low temperature area should be customized
