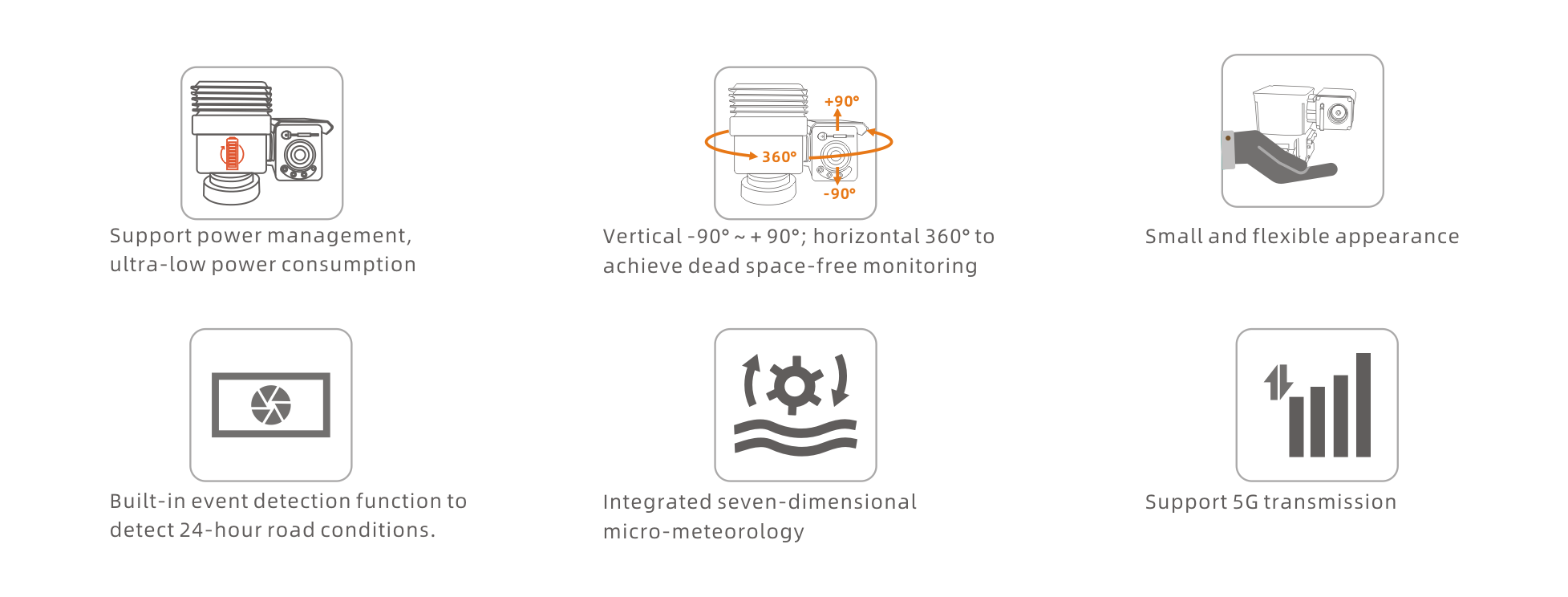

Ultra-low power consumption PTZ

2/4/8 million high-definition 4K video, 40 times ultra-large optical zoom

Support starlight level ultra-low light night vision effect and infrared supplemental lighting

Support front-end traffic incidents and traffic status detection

Support seven-dimensional micro weather

Support flexible setting of alarm threshold and congestion level

Support ultra-low-power design, support power-off self-locking, the power consumption of the whole camera is as low as 5W when the PTZ is stationary

Support the power consumption in the remote dormancy and wake-up, dormant state ≤ 0. 2W

Support background power management, real-time monitoring of battery status

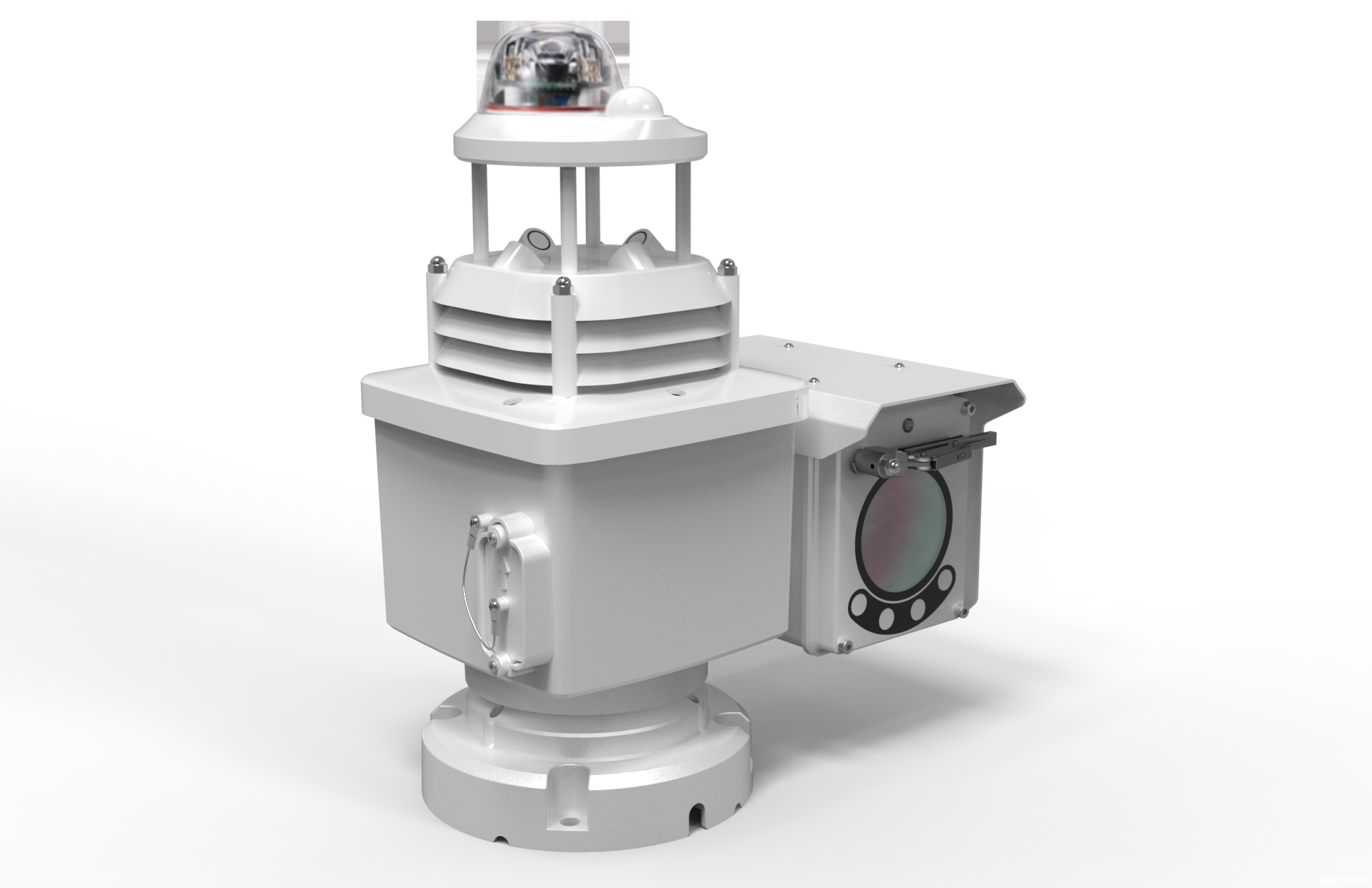

HD Network PTZ (AI Intelligent Analysis) ST-NT7000 Series

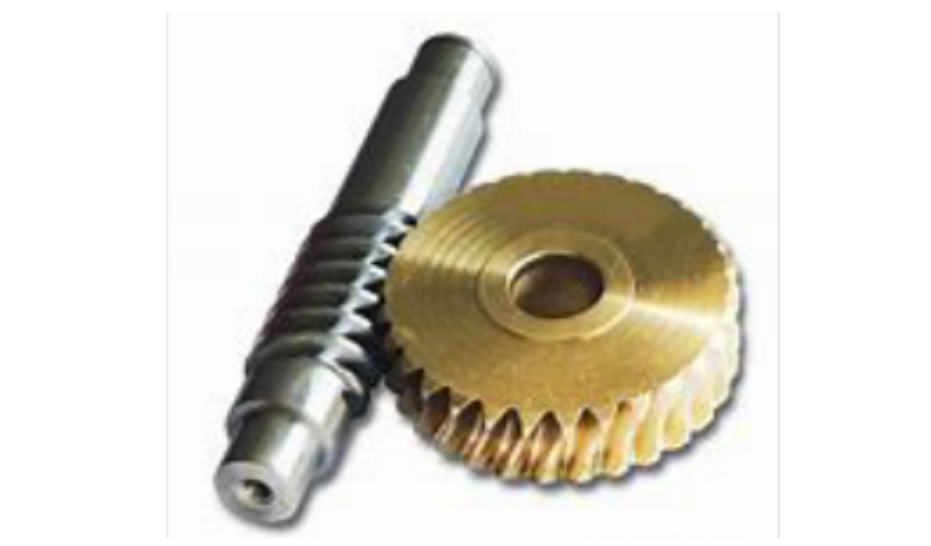

Stable and efficient worm and gear create a reliable and ultra-low-power system

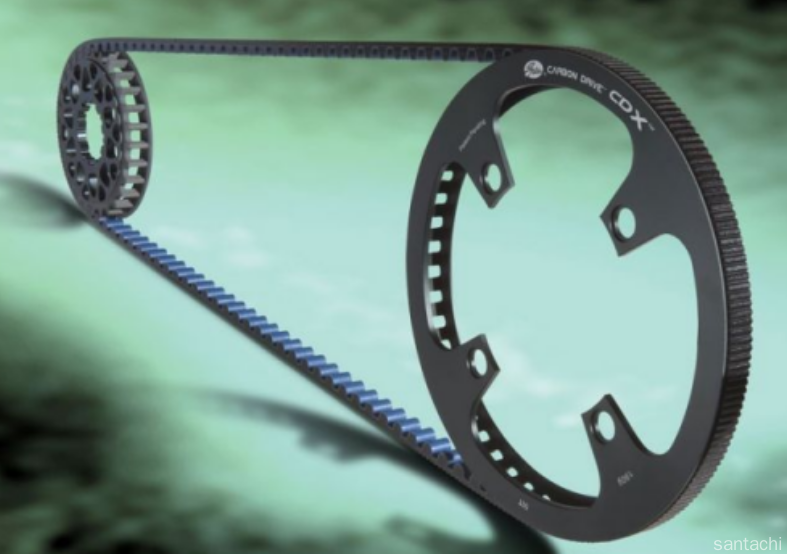

Peer products: usually belt driving is adopted	Santachi: adopting the way of worm-and-gear driving.
High-temperature and low-temperature environments accelerate belt loosening, deformation, aging and fracture, and limit service life PTZ operation and preset positions are liable to shift in extreme weather Motor status is required to be maintained relying on power supply. Static power consumption is mostly 20W ~ 30W	Worm-and-gear structure does not affect life in extreme environments, which is firm and reliable. Stable operation at the installation position, not easy to be displaced by wind Specialized circuit is adopted; therefore, the motor can be self-locked once the equipment stops rotation, the motor no longer consumes power. Static power consumption is less than 5W, and is as low as 0. 2W in dormant state (remote dormancy and wake-up can be available)

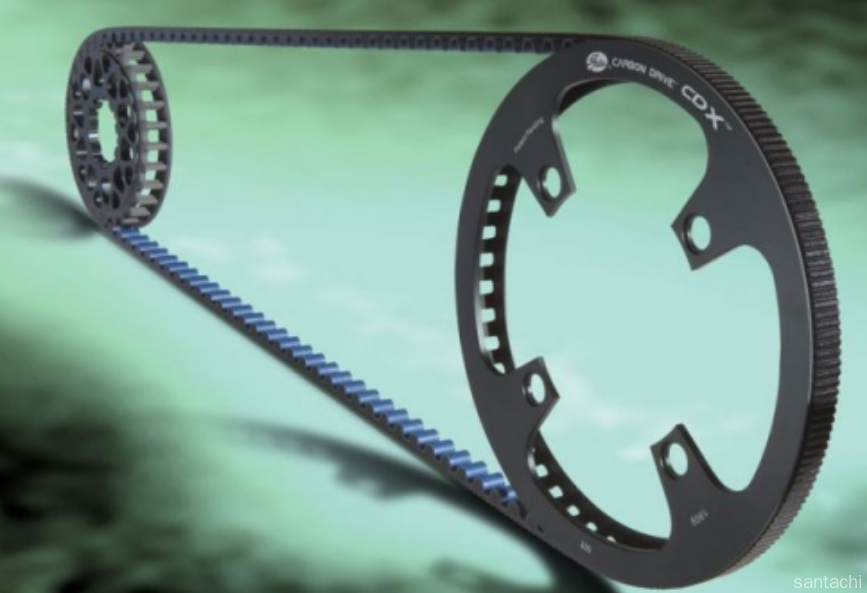

Peer products: usually belt driving is adopted

Santachi: adopting the way of worm-and-gear driving.

High-temperature and low-temperature environments accelerate belt loosening, deformation, aging and fracture, and limit service life

PTZ operation and preset positions are liable to shift in extreme weather

Motor status is required to be maintained relying on power supply.

Static power consumption is mostly 20W ~ 30W

Worm-and-gear structure does not affect life in extreme environments, which is firm and reliable.

Stable operation at the installation position, not easy to be displaced by wind

Specialized circuit is adopted; therefore, the motor can be self-locked once the equipment stops rotation, the motor no longer consumes power.

Static power consumption is less than 5W, and is as low as 0. 2W in dormant state (remote dormancy and wake-up can be available)

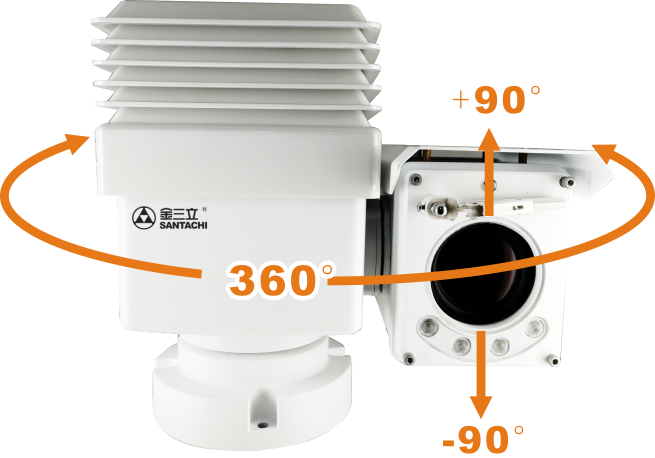

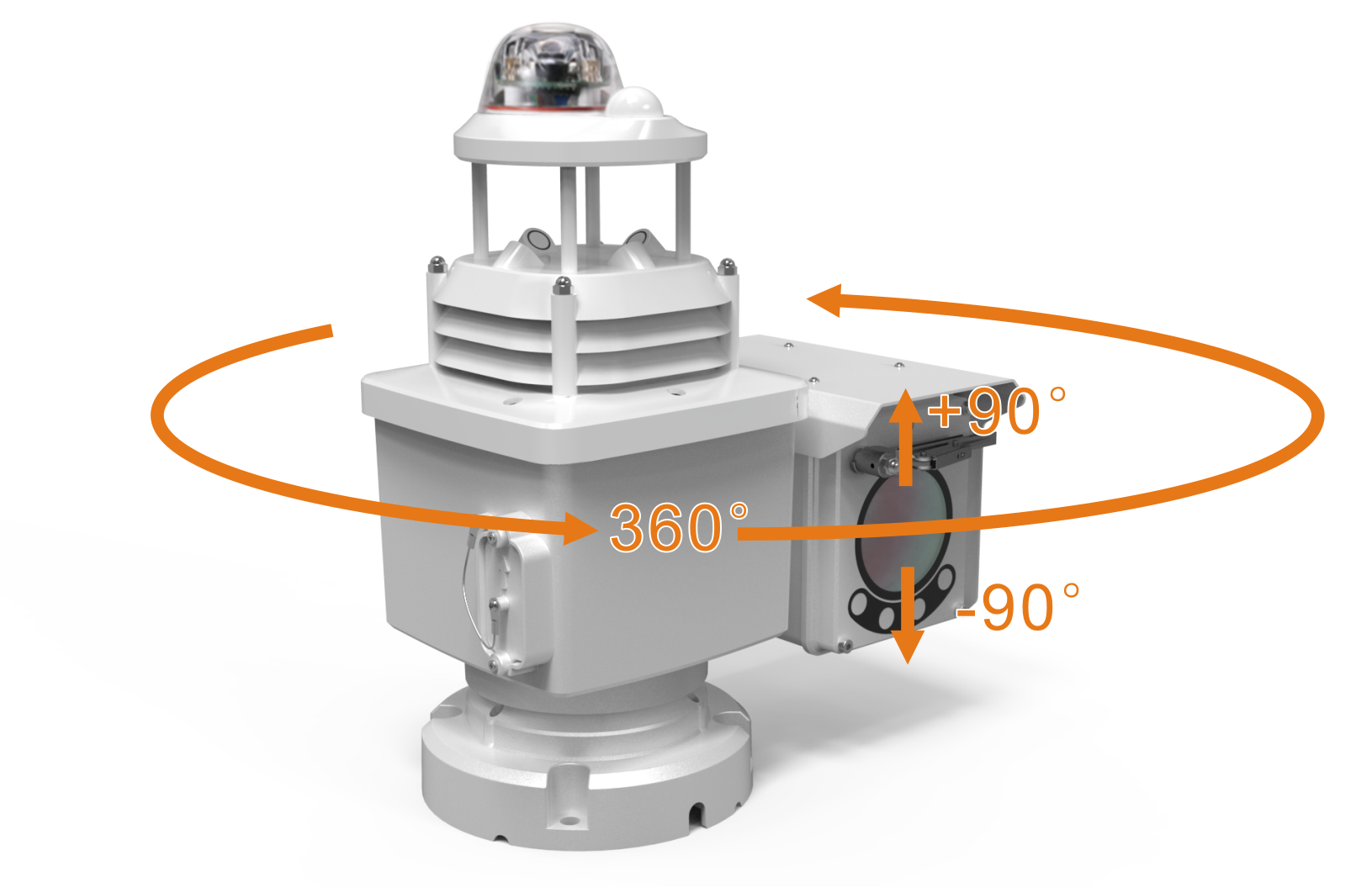

Vertical -90 °~ + 90 °rotation plus horizontal 360 ° infinite rotation

Through vertical -90 °~ + 90 °rotation and horizontal 360 °infinite rotation, 360 °multi-dimensional monitoring can be realized at the monitoring points. In addition to monitoring the road environment, the environmental temperature and humidity, solar power information and other information can also be collected and displayed, facilitating the users to understand the working status of field equipment

Traffic incident detection

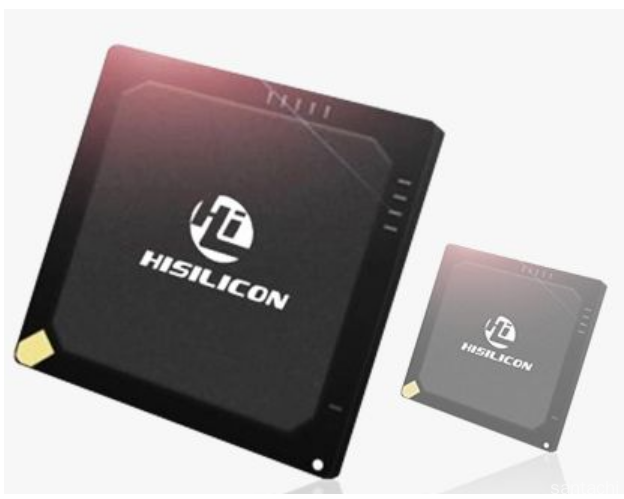

Integrated Hisilicon Hi3559A chip
Dual-core NNIE neural network computing engine, supporting in-depth learning neural network acceleration, computing power up to 4T
Support traffic incident detection types: Illegal parking, going in a direction not allowed by traffic regulations; Pedestrian crossing marking, throwing things, congestion, overspeed, low speed, illegal occupation of emergency lanes, large vehicles occupying small lanes, vehicle departures, dangerous vehicle identification
Support traffic Status measure category: Congestion, traffic flow, average speed, average headway, average space headway
Support H 264 and H. 265 video codecs with multiple specifications
Support remote upgrade to facilitate algorithm model replacement

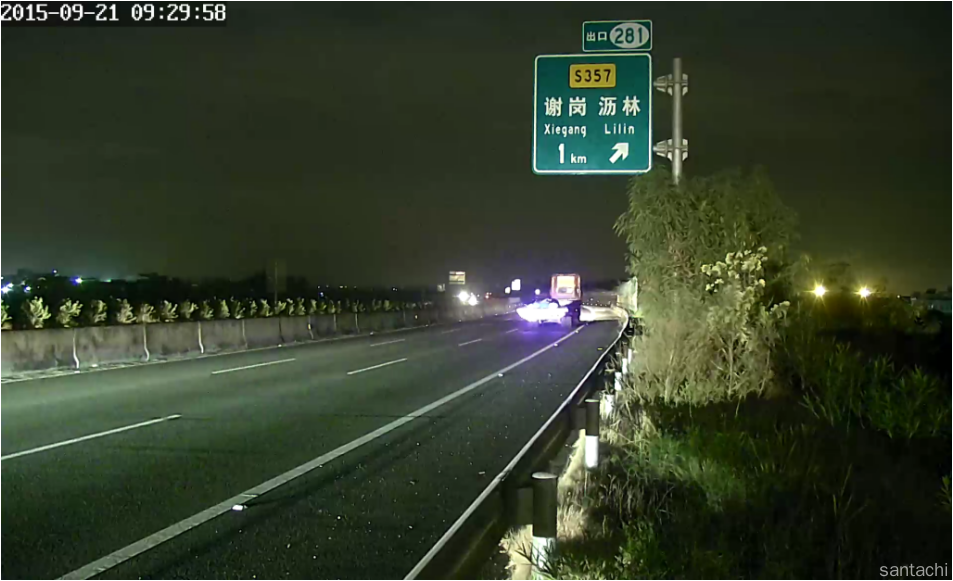

Starlight Ultra Low Illumination

Star-level ultra-low illumination, improve video brightness in low-light environments relying on the ultra-low sensitivity of the camera hardware, roads and vehicles are clearly visible at night without lights

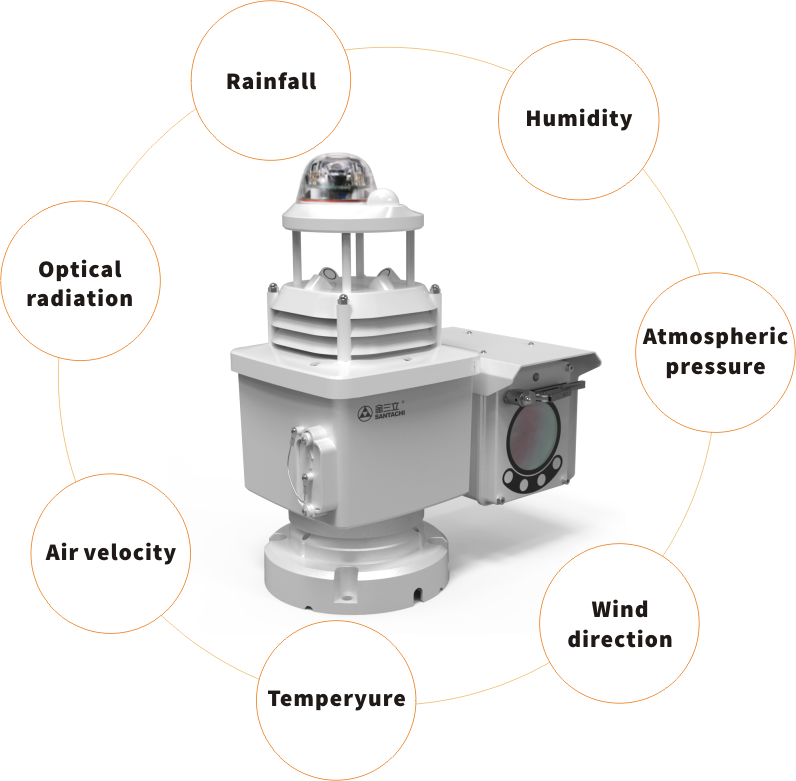

Integrated micro weather station (maximum scalable support the seven dimensions)

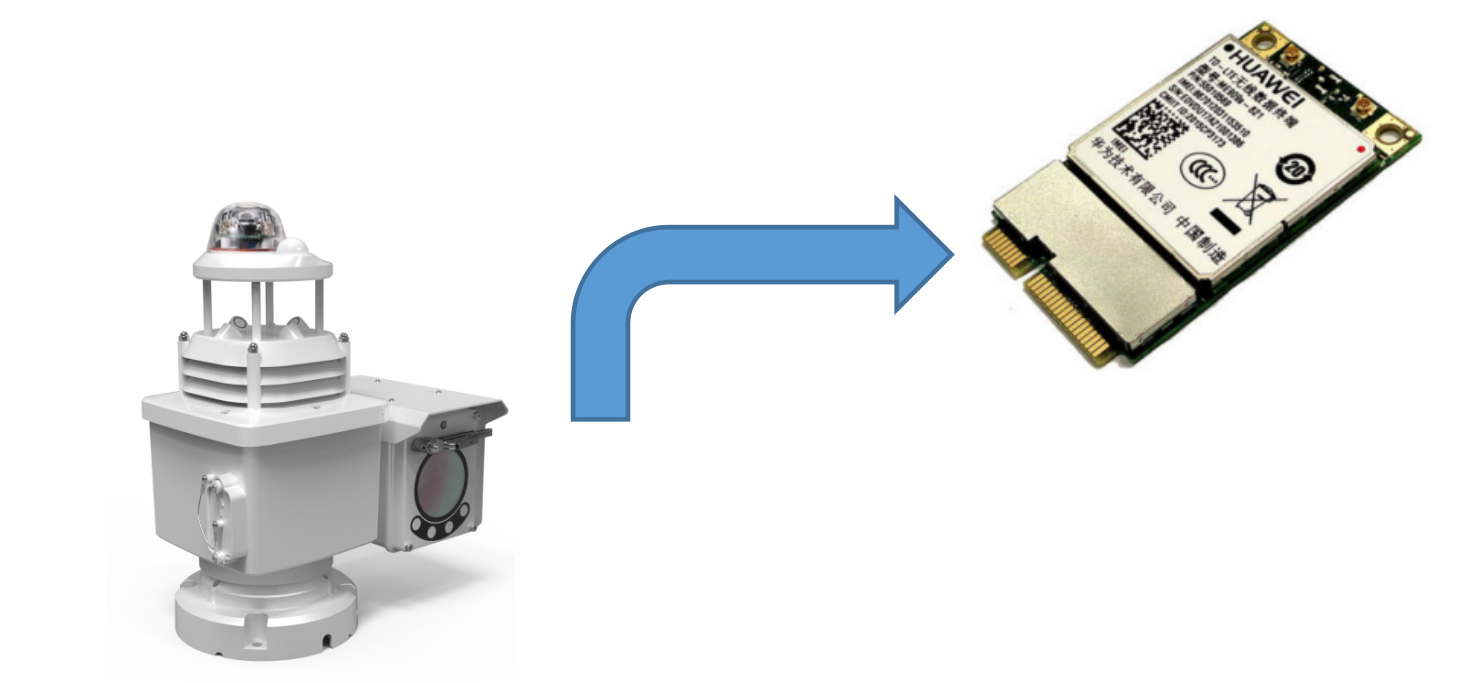

Support 4G /5G transmission

Integratable high-performance 4G / 5G modules support wireless transmission

Centralized management of front-end equipment traffic, and can configure daily and monthly flow thresholds

Residual daily traffic and monthly OSD are visible

Avoid paying extra cost for excess traffic or conduce your device offline

Santachi HD Network PTZ kit products

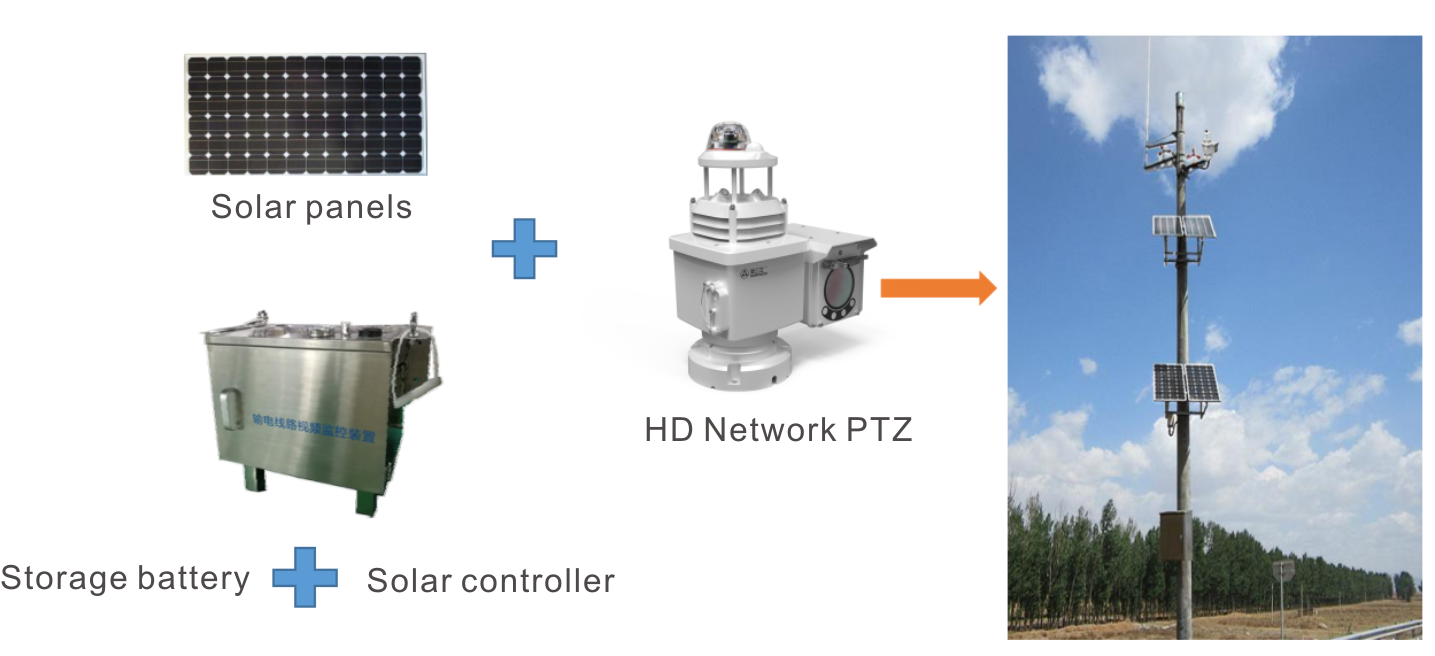

Front-end traffic incident detection kit products: solar panel + battery + solar controller + front-end traffic incident detection camera

Completely independent working environment

Built-in 5G module and large-capacity memory card can realize ultra-long-distance wireless transmission of video images. Solar panels and high-density batteries are combined to achieve 365 days * 24 hours per day monitoring and timely feedback to monitoring center in a non-power supply environment and without wired network.

Miniaturized system

Smaller size solar panels and batteries can be selected for 24-hour monitoring due to ultra-low power consumption feature.

Simple and convenient retrofit solution

It can be retrofitted with existing solar panels and batteries. The battery life can be greatly extended for achieving all-weather service based on the ultra-low power consumption characteristics.
